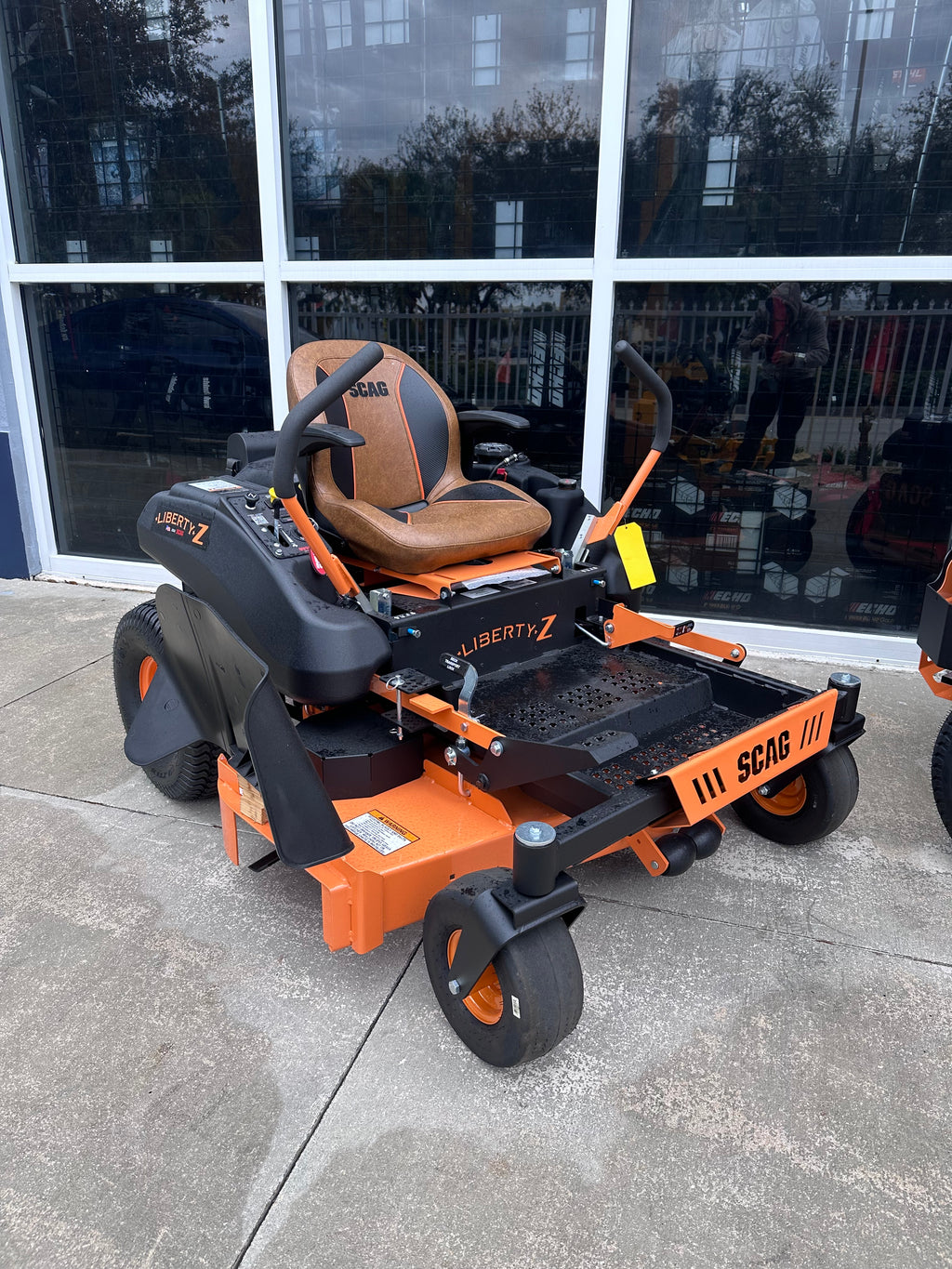

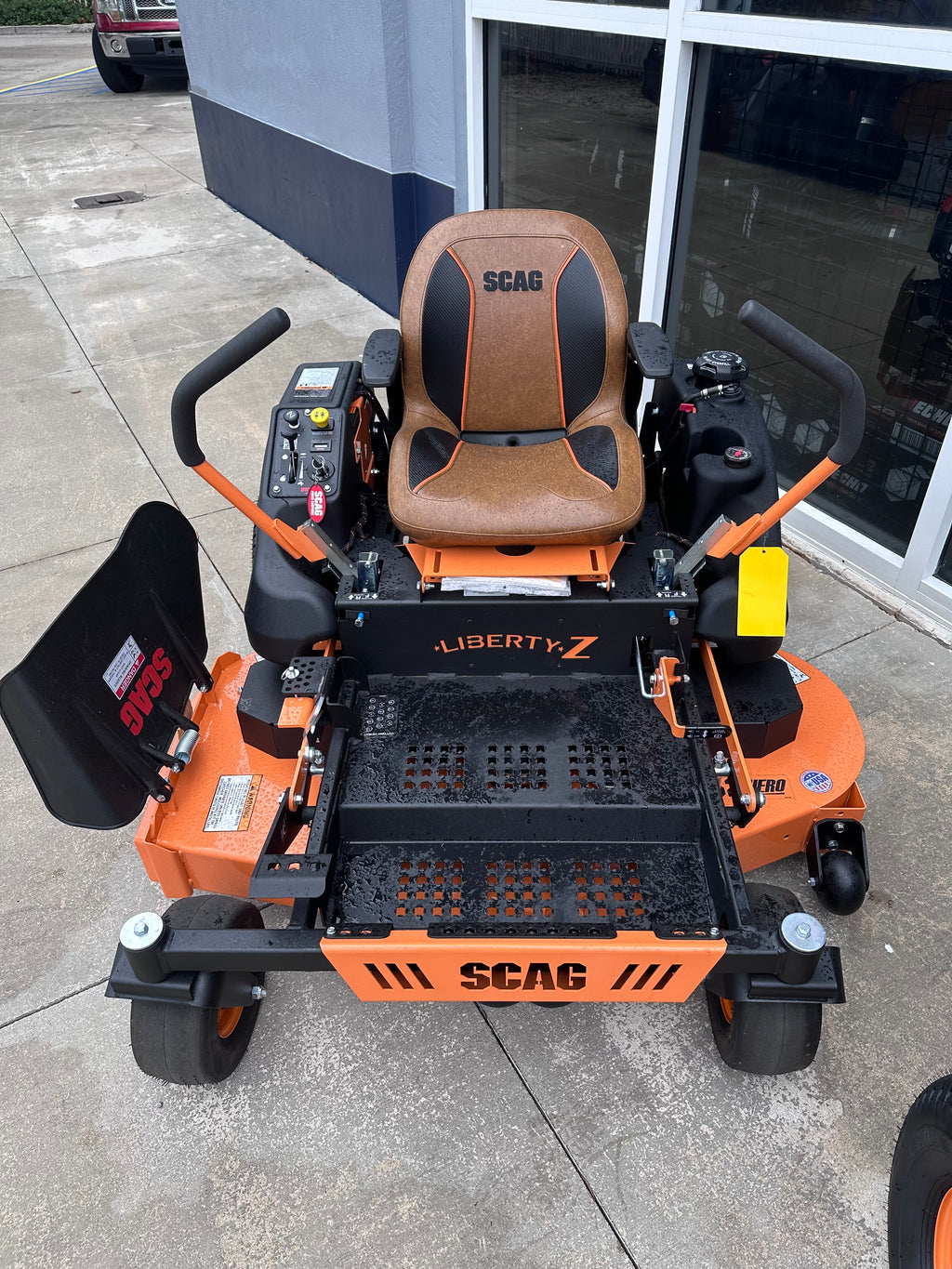

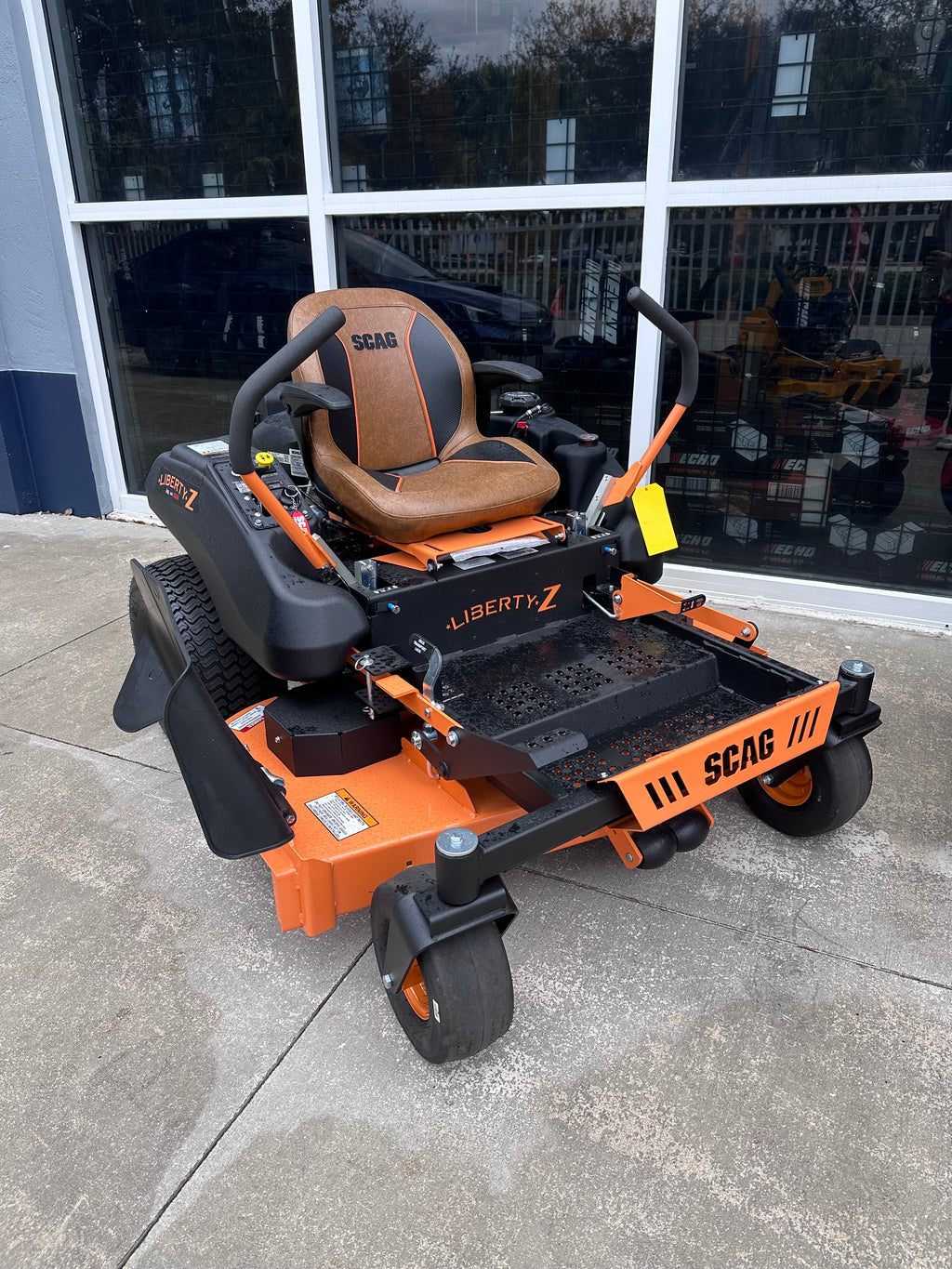

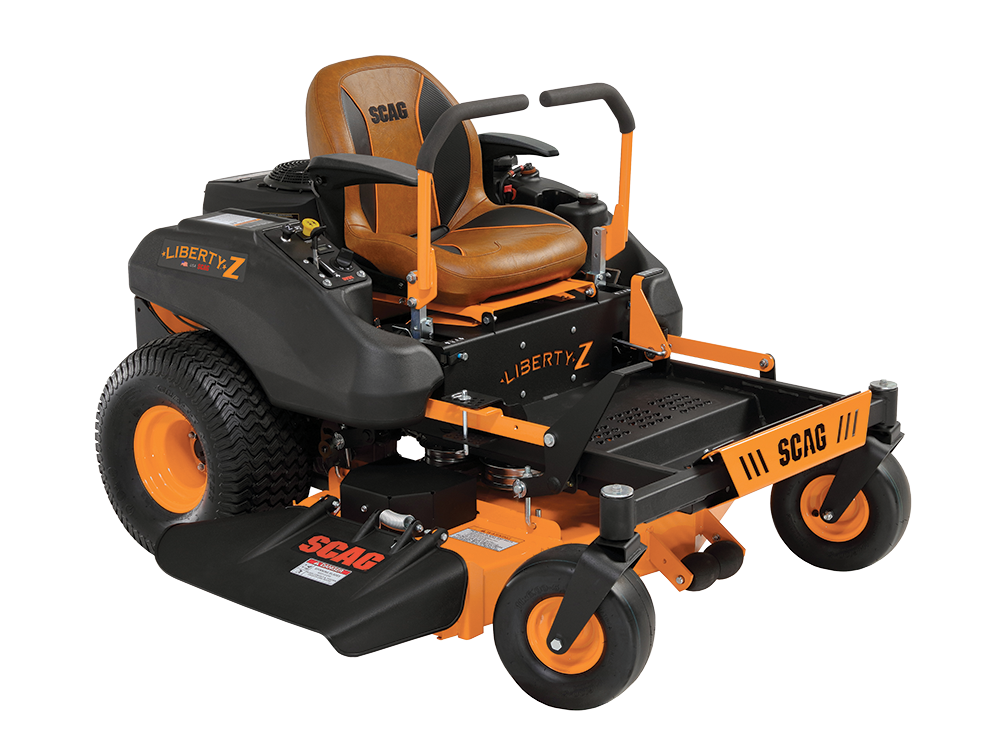

Scag Liberty Z Zero Turn Mower | Up to 61" Deck & 27 HP

Features

• Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Deep, Fabricated, And Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• Speeds Up To 7 MPH: The Liberty Z features proven, dual hydro transaxles for smooth, solid power to the drive wheels. Tuff Torq TZ450, or Hydro-Gear ZT-2800 or ZT-3100 transaxles, depending on model.
• Ride In Comfort: This seat is ultra-comfortable and adjustable (with tools), contoured for improved comfort, and features armrests*.
• Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.

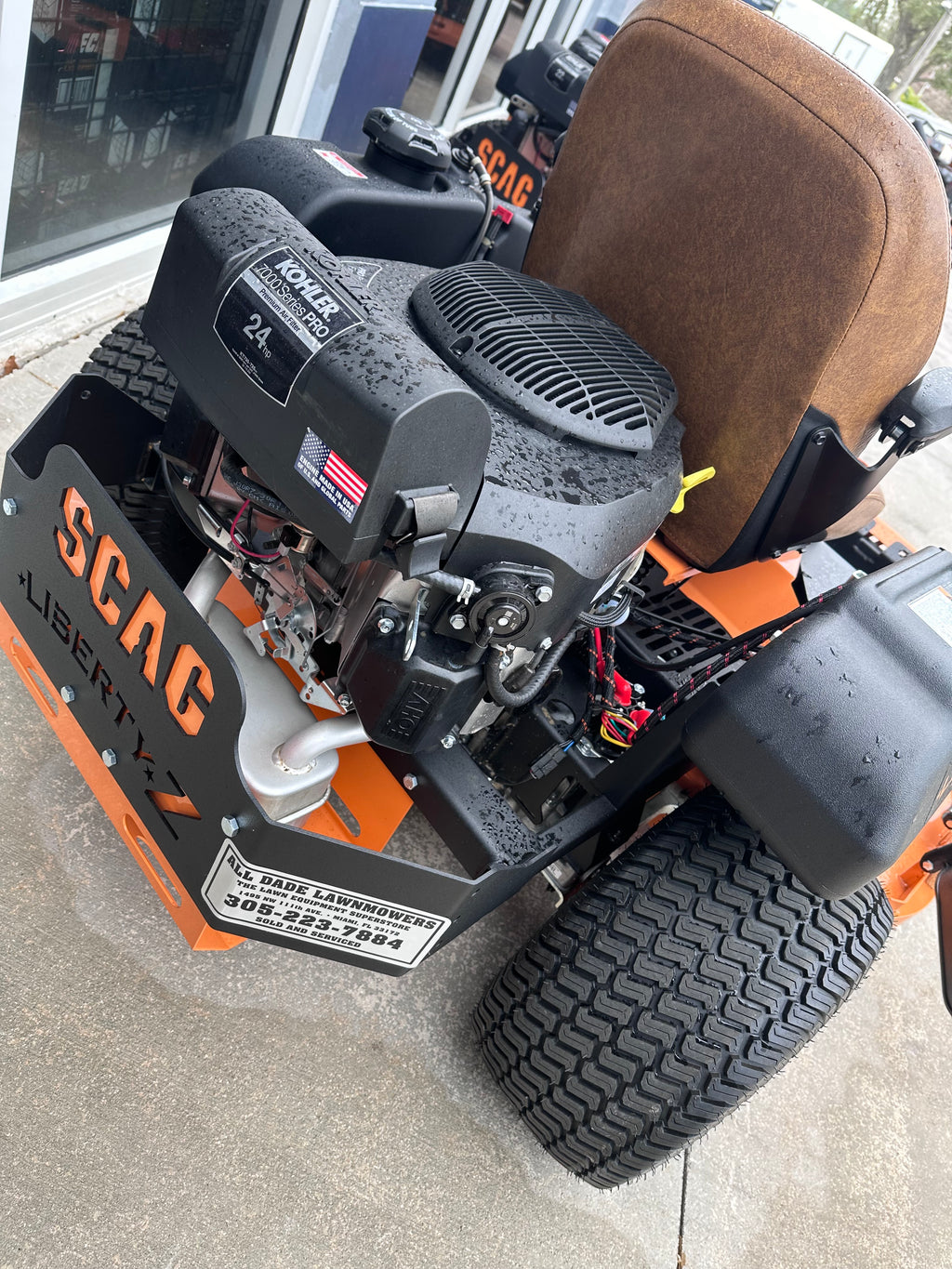

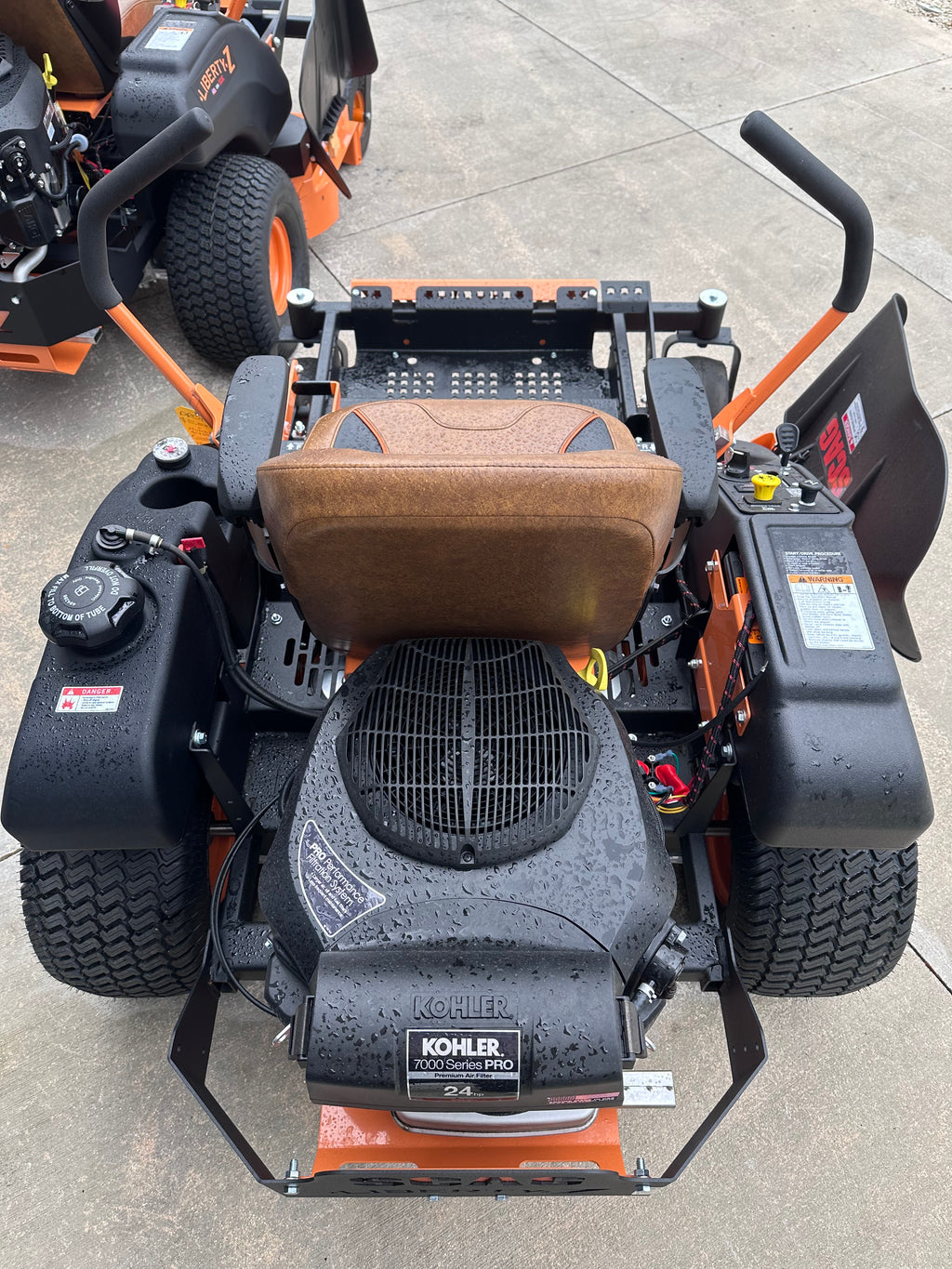

• Reliable Power, Up To 27 HP: Choose from a variety of proven air-cooled, V-twin engine options to help you get the job done.

Dimensions

• Length: 73.5 in.
• Width (chute down): 73.5 in.
• Width (chute in transport position): 62 in.
• Height: 41 in.
• Weight: 695 lb

Specifications

• Total Fuel Capacity: 5.5 gal. (48 in., 52 in. and 61 in.)
• Drive Tires: 20 in. x 10 in.-10 in. (61 in.)
• Caster Tires: 11 in. x 6 in.-5 in. (48 in., 52 in. and 61 in.)
• Seat: Padded with arm rests, adjustment forward and back (tools required); (no armrests on 36 in. and 42 in. models)
• Drive System Type: 61 in. models: Hydro-Gear ZT3100 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 61 in.
• Cutting Height: 1.5 in. to 4.5 in. in .25 in. increments
• Spindles: Aluminum housing with sealed ball bearings.
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Deck Lift: Foot-operated pedal
• Type: Heavy-Duty Hero Cutter Deck
• Blade Engagement: Ogura GT2 (108 ft lb) – (61 in.); Adjustable air-gap for extended life.
