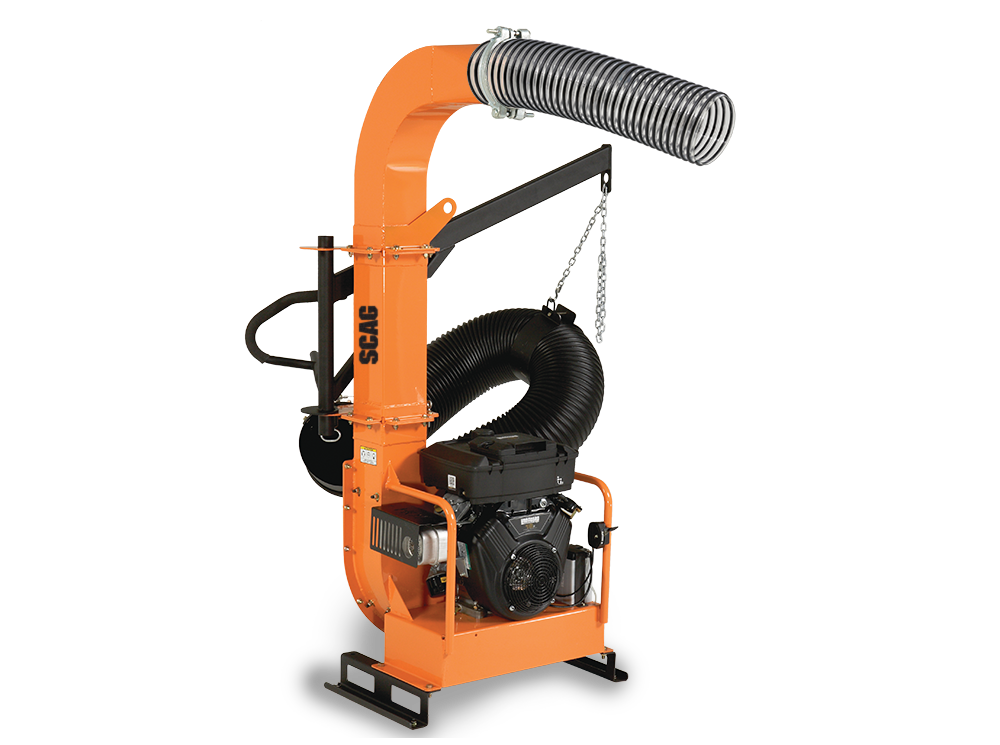

Scag Skid Mount Truck Loader | 18 HP Briggs Vanguard
$5,389.00
Skip to product information
Scag Skid Mount Truck Loader | 18 HP Briggs Vanguard
$5,389.00
TLS20-18BV
Pickup available at 1495 Northwest 111th Avenue
Usually ready in 24 hours
MAKE A STAND

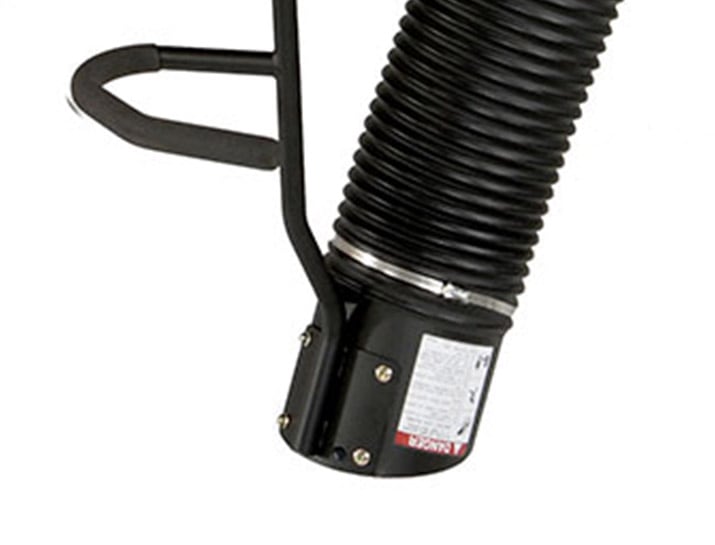

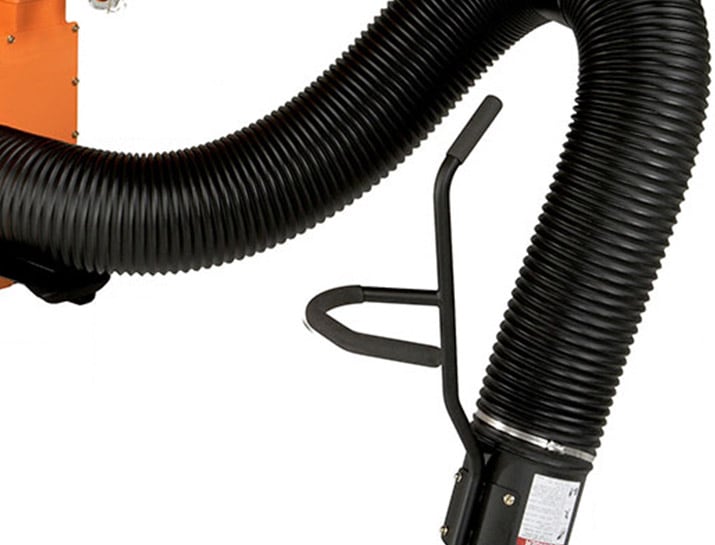

With a steel beveled intake nozzle that makes debris pickup easy and ambidextrous handle for enhanced maneuverability, it’s time to stand your ground with the Skid-Mount. Its welded-steel impeller with 3/8″-thick steel blades are balanced for reduced vibration and put less stress on the engine—delivering performance for years to come.
| Product Specification | Skid-Mount |
|---|---|
| Model | TLS20-18BV |
| Fuel Capacity / Tank | 1.75 gallons – engine-mounted metal tank |
| CFM Output | 3,075 |
| Frame Construction | All-steel, welded |

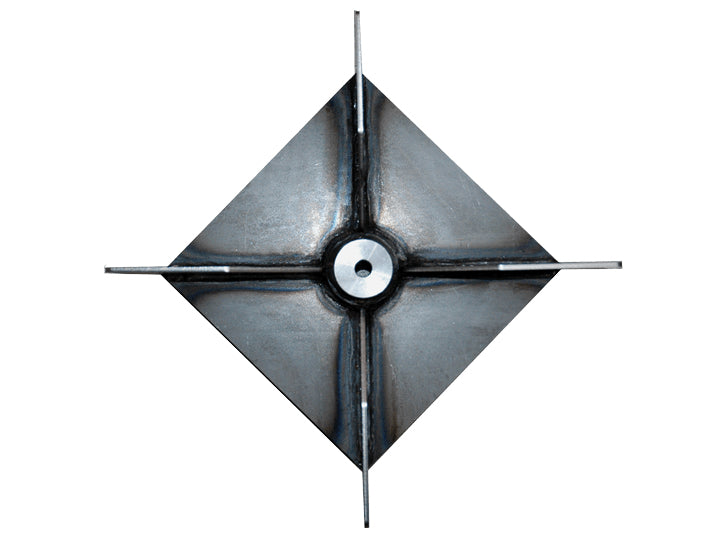

| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub |
| Impeller Diameter / Width | 20″ / 5.25″ |

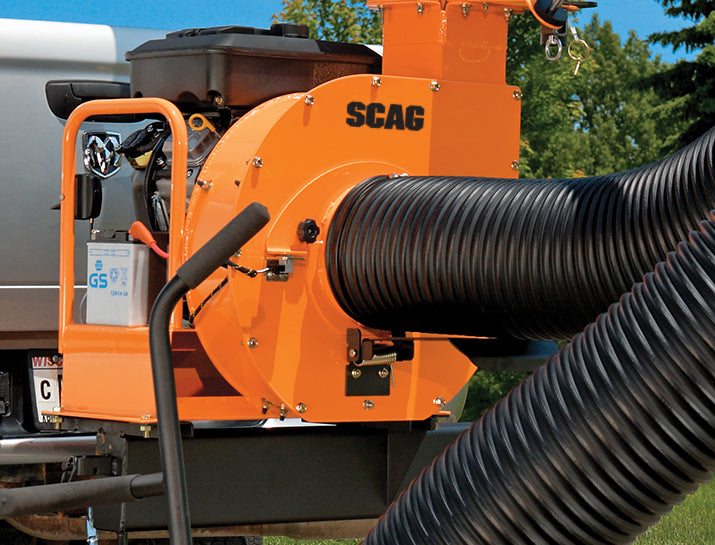

| Blower Housing Construction | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 6″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ length, 10″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip |

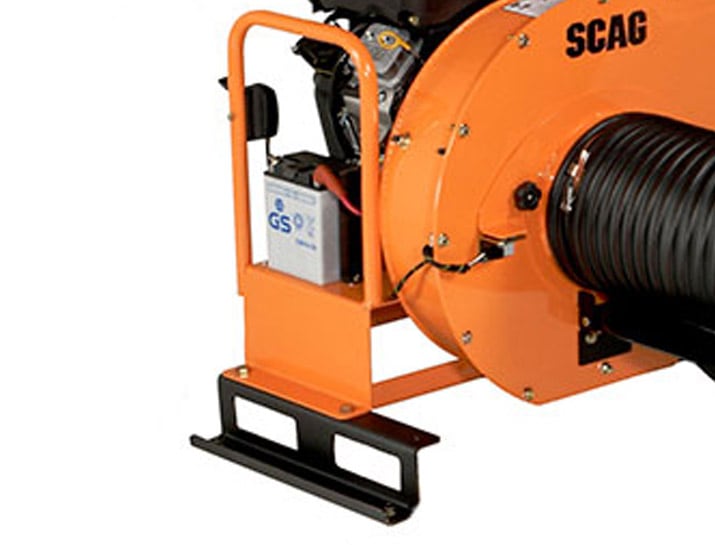

| Unit Mounting | 4″ steel skid risers |
| Discharge Tube | Clear thermoplastic, 7″ diameter |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready | n/a |
| Axle | n/a |
| Tires | n/a |
| Trailer Width | n/a |
| Height | 74.25″ (without skid or hitch mount attached) |
| Weight | 437 lb |
