Scag V-Ride LS Stand-On Mower | Up to 52" deck & 25hp
Scag V-Ride LS Stand-On Mower | Up to 52" deck & 25hp
If you're unsure about fitment or intended use, please contact us before purchasing. Product images are for reference only and may show multiple models, configurations, engine options, deck sizes, or colors.
Pickup available at 1495 Northwest 111th Avenue
Usually ready in 24 hours
TAKE A STAND

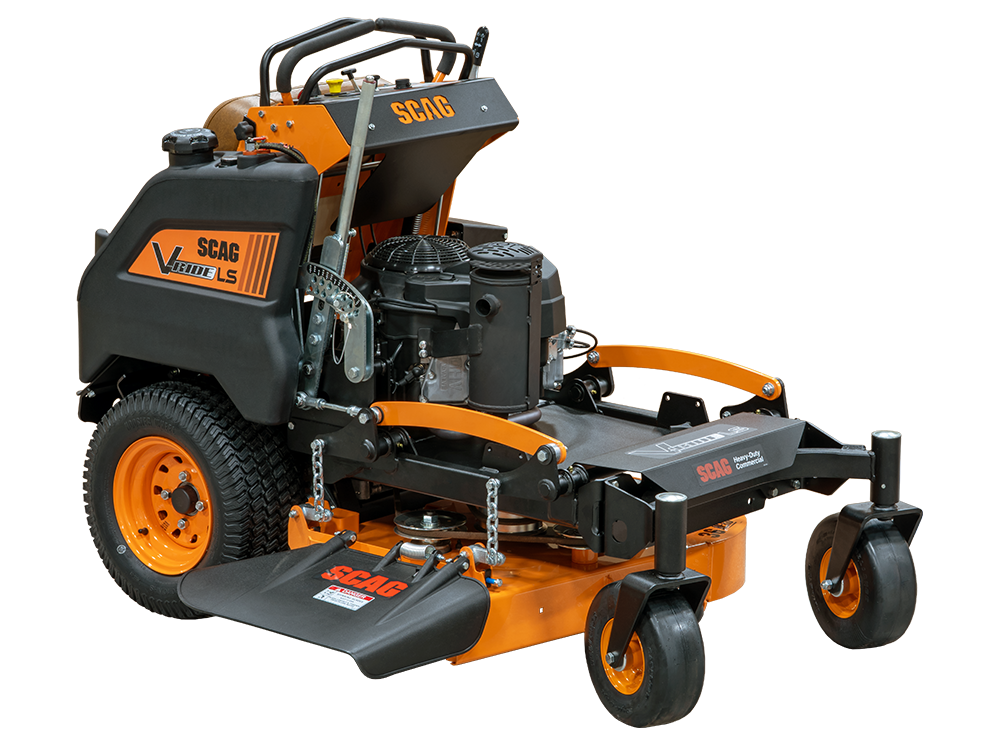

Take a stand for more budget-friendly productivity with the new Scag® V-Ride™ LS stand-on zero-turn mower. With its commercial-grade backbone and tough Scag construction, this machine fits perfectly into the existing product lineup. The proven Hero cutter deck provides the outstanding quality-of-cut you’ve come to trust for envy-inducing results.

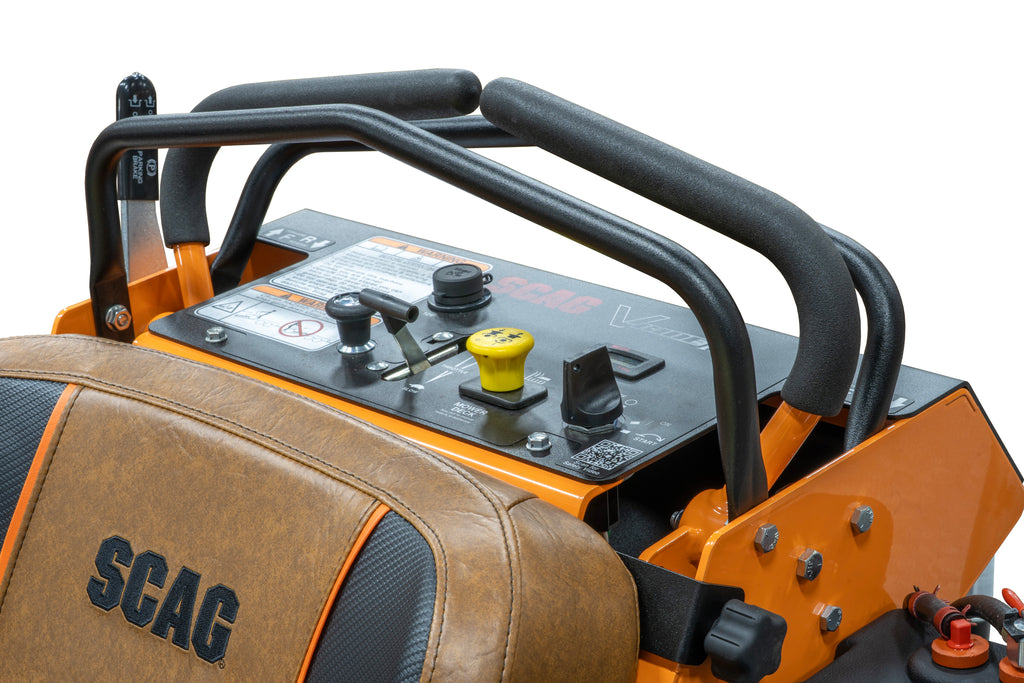

Drive Control Levers
Accessible Controls
Incredibly easy to use, its ergonomic drive control levers make it a cinch to maneuver and allows you to get more done.

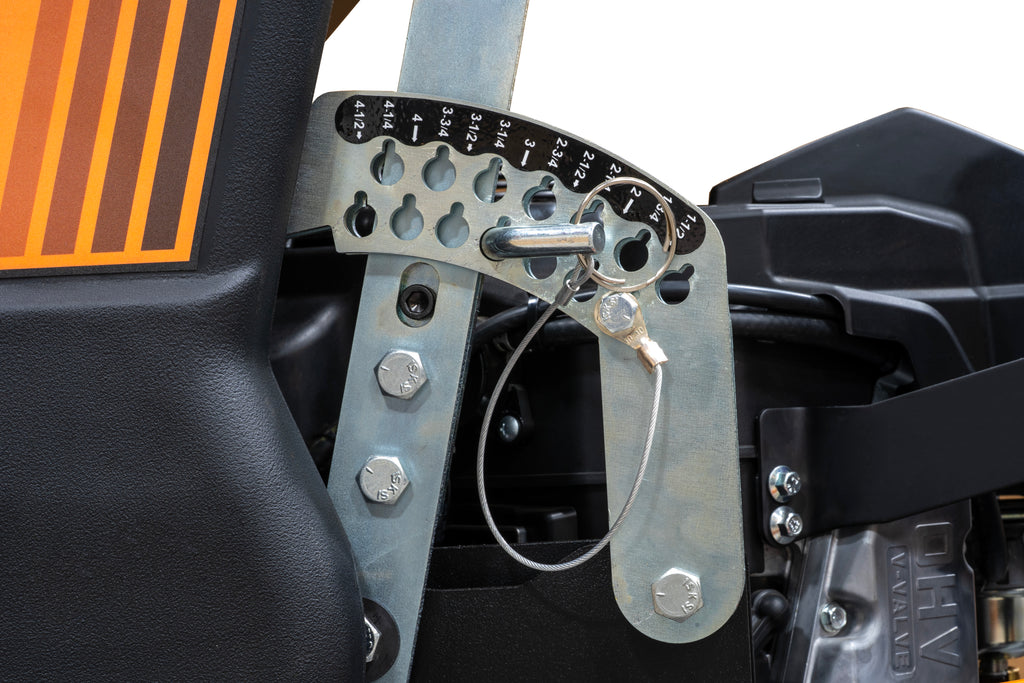

Cutter-Deck Lift System
Convenient, Spring-Assisted Lever
Cutter deck can be lifted and locked into transport position from the operator’s station. Cutting heights are easily set by placing the tethered pin at the desired height.

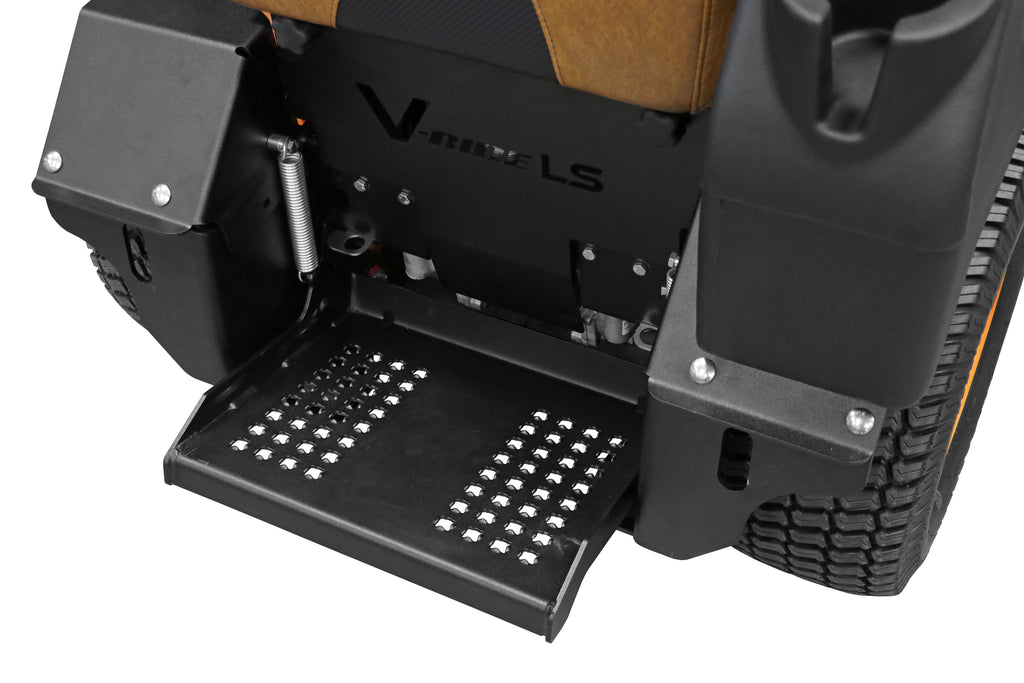

Operator Platform
EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE
A spacious operator platform featuring suspension and a padded, bolstered cushion ensures a smooth, comfortable ride all day long.

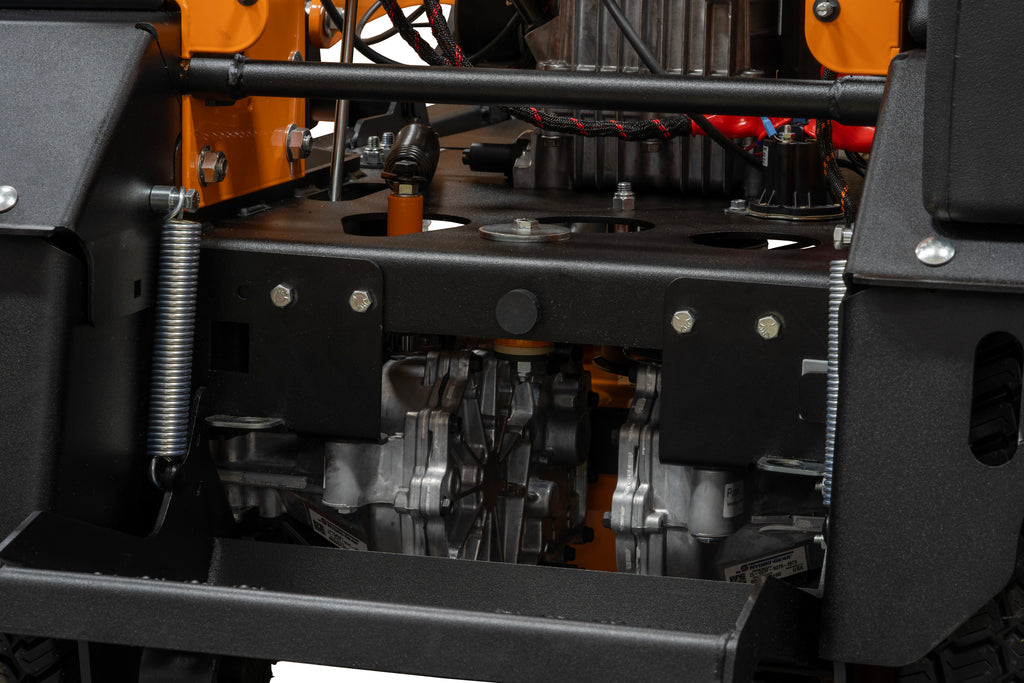

Industrial-Grade Hydraulic System
Speeds up to 7 MPH
Dual Hydro-Gear 3100 transaxles deliver dependable power, with speeds up to 7 mph.
| General | |
|---|---|
| Total Fuel Capacity | 6.75 gallons |
| Drive Tires | 20″ x 8″-10″ four-ply pneumatic tubeless, radius edge |
| Caster Tires | 11″ x 4″-5″ run-flat semi-pneumatic |
| Seat | Extra-large comfort cushion |
| Drive System | |
| Drive System | Hydraulic drive with two integrated zero-turn transaxles |
| Transaxles | Hydro-Gear™ ZT-3100 |
| Pumps | ZT3100 Internal Pump: 10 cc |
| Motors | Internal Motor: 12 cc |
| Forward Ground Speed | 7 mph |
| Reverse Ground Speed | 4 mph |
| Parking Brake | Hand lever |
| Deck | |
| Cutting Widths | 36″, 42″, 48″, and 52″ |
| Type | Heavy-Duty Hero Cutter Deck |
| Cutting Height | 1.5″ to 4.5″ in .25″ increments |
| Deck Lift | Hand lever |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Heavy-duty spindle shaft, cast aluminum housing, sealed ball bearing, maintenance-free |
| Blade Engagement | Electric blade engagement clutch with control panel switch |
| Electric Clutch Type | Ogura Heavy Duty PTO Clutch Brake |
|
Product Dimensions
|
36″ V-Ride LS
|
42″ V-Ride LS
|
48″ V-Ride LS
|
52″ V-Ride LS
|
|---|---|---|---|---|
| Length | 65.25″ | 65.25″ | 65.25″ | 65.25″ |
| Tracking Width | 36″ | 36″ | 36″ | 36″ |
| Width (chute down) | 48″ | 54.5″ | 60.5″ | 64.5″ |
| Width (chute in transport position) | 37″ | 43″ | 49″ | 53″ |
| Height | 47″ | 47″ | 47″ | 47″ |
| Weight | 716 lbs | 730 lbs | 756 lbs | 794 lbs |
