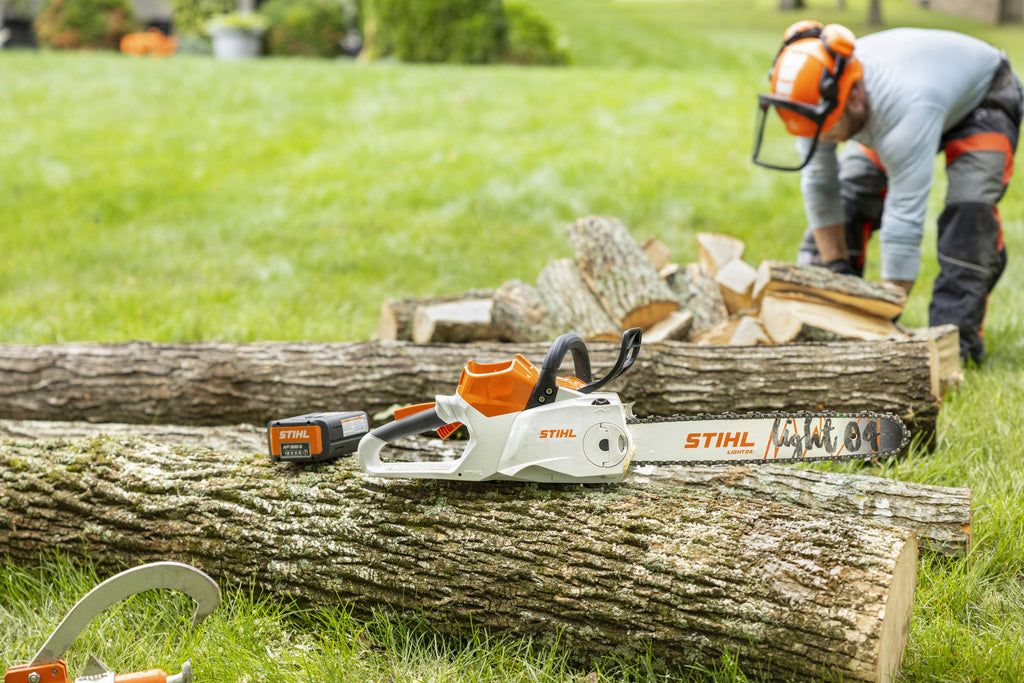

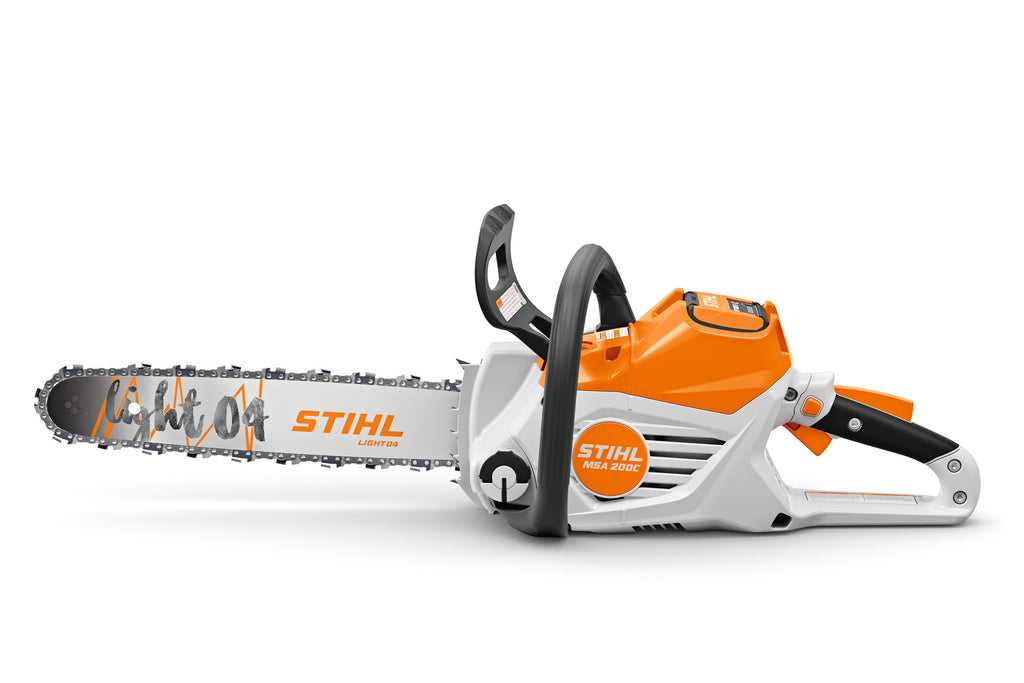

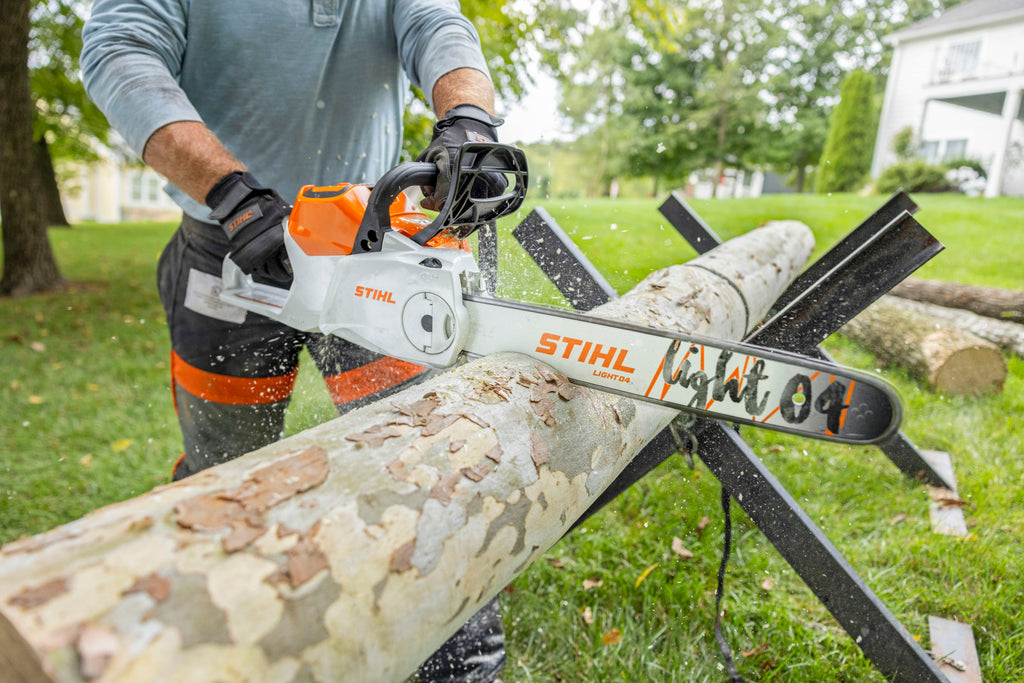

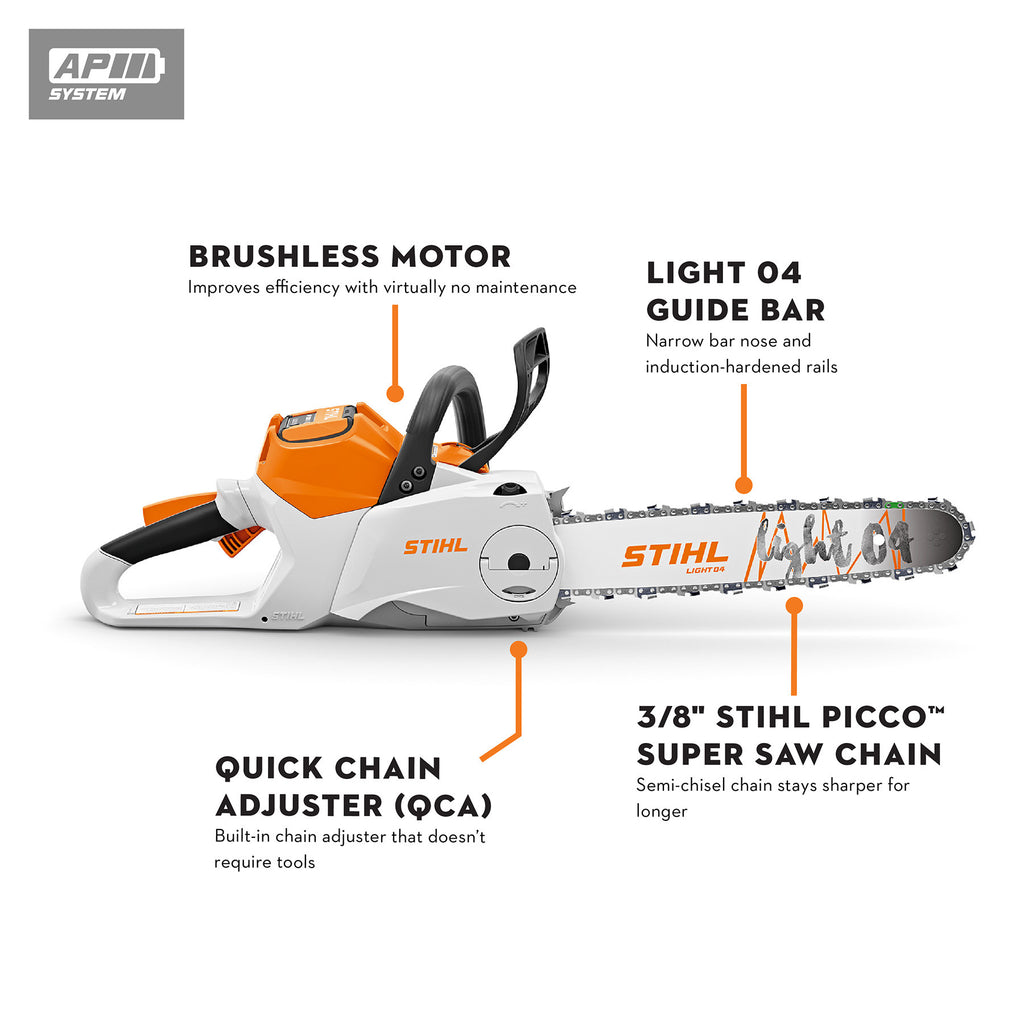

The STIHL MSA 200 C-B handles firewood, storm debris and household cutting with interchangeable lithium-ion battery power. Trigger starting eliminates fuel mixing and pull-starting. It produces no exhaust during operation and less noise than comparable gasoline tools. Battery and charger are separate for this tool-only selection.
Features

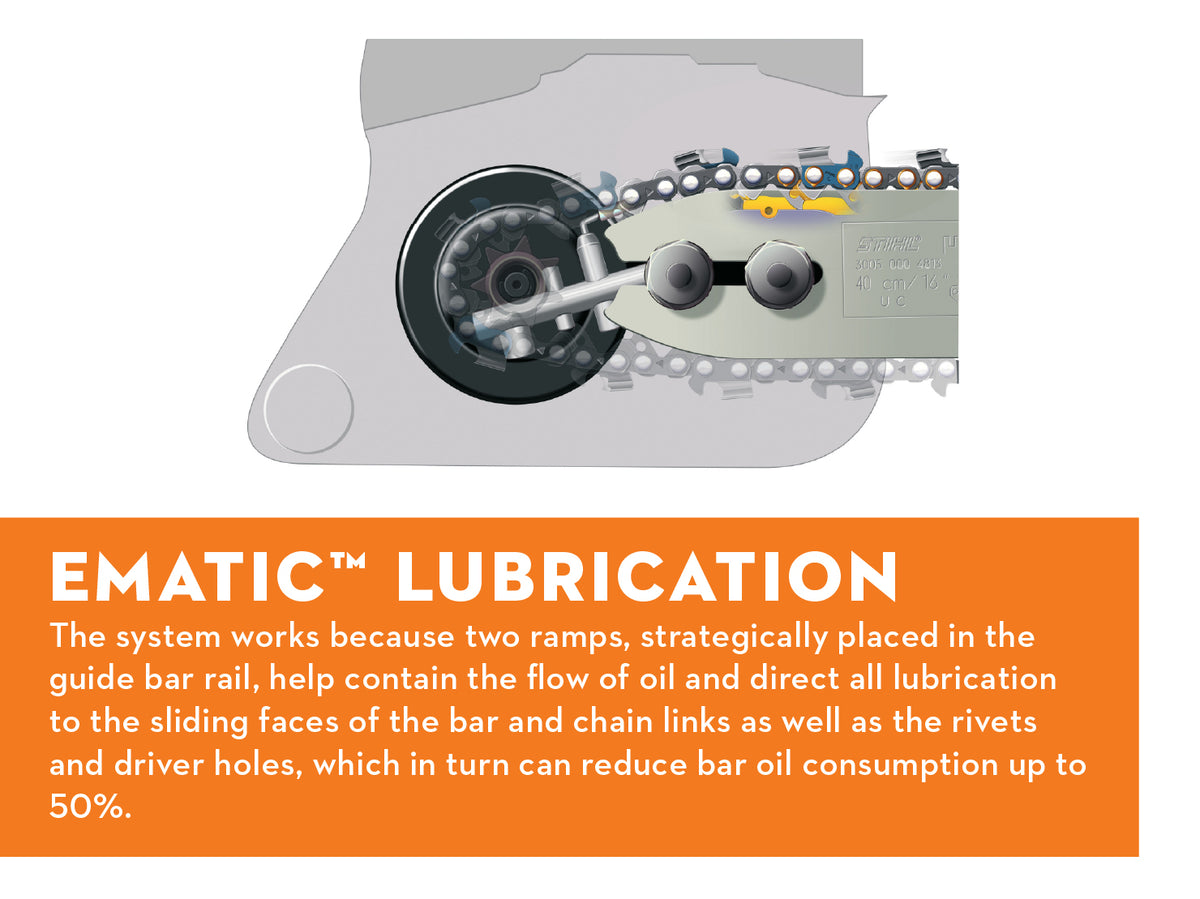

- Ematic™ oil delivery: Directs oil to the cutting components, reducing consumption by up to 50% with the specified bar and chain.
- Splash protection: IPX4-tested construction resists splashing water.
- Portable design: Low weight supports easier handling.

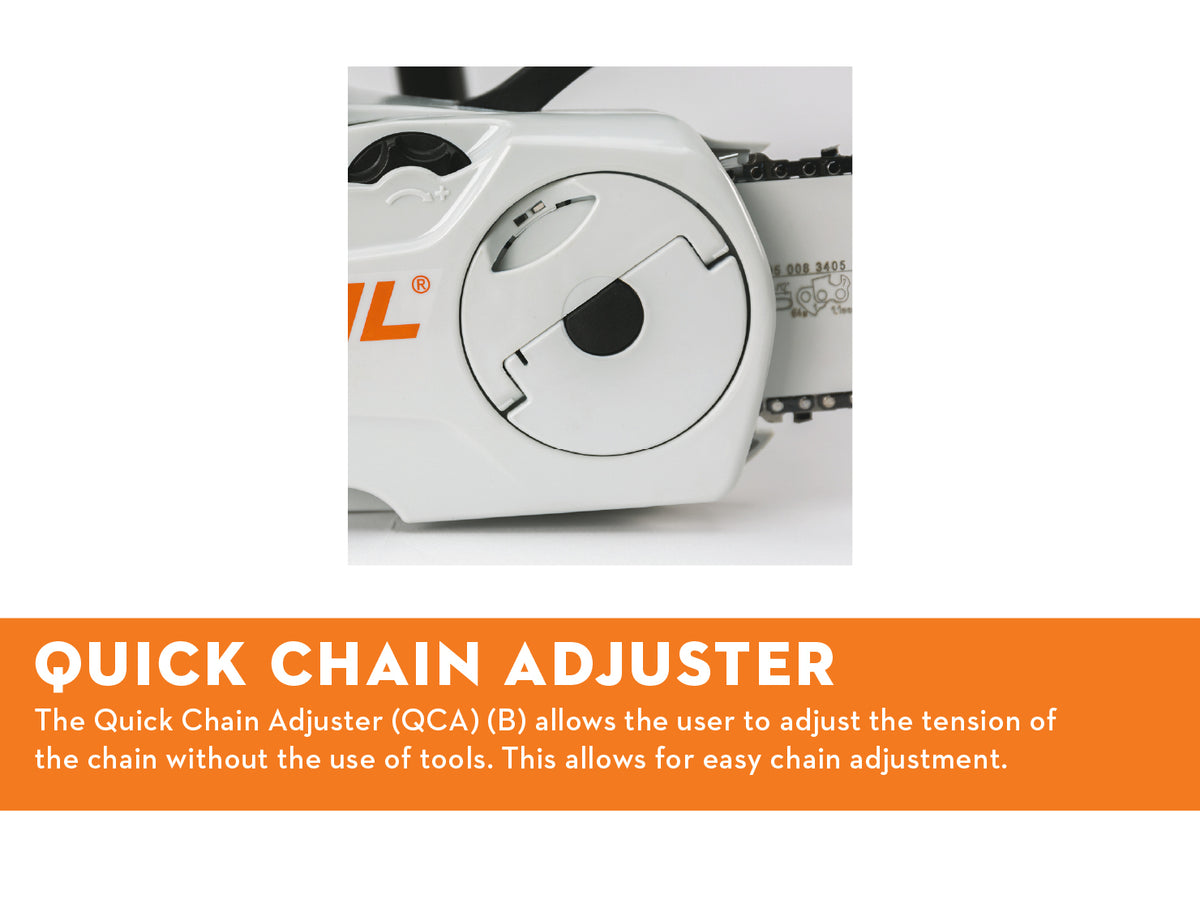

- Quick chain adjustment: The QCA mechanism permits tool-free tension adjustment.

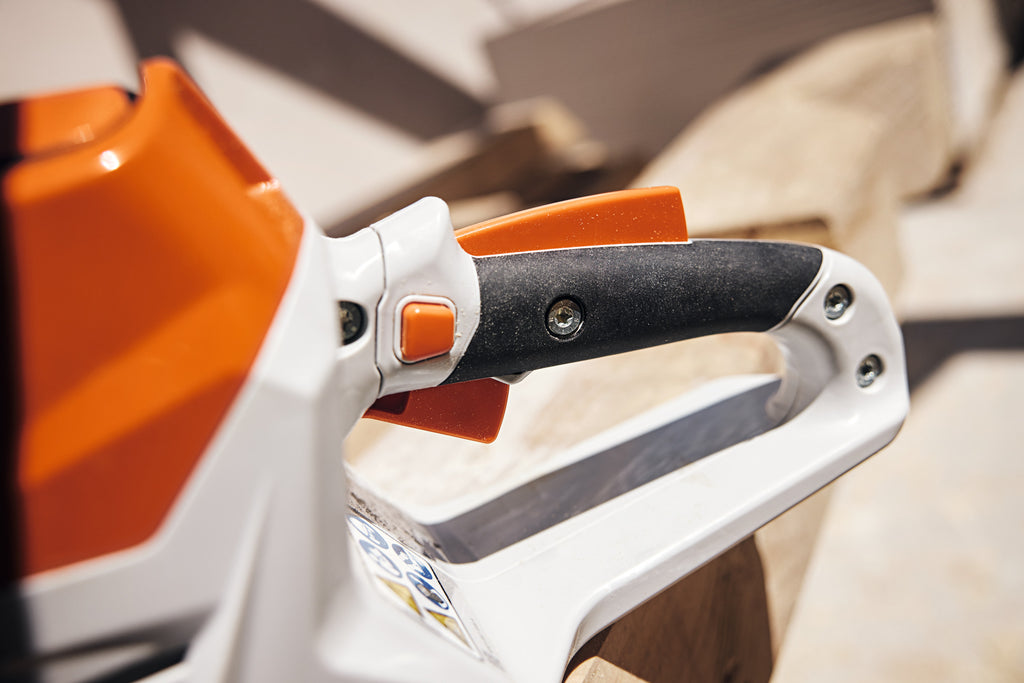

- Soft grip: Rubberized surfaces improve holding comfort.
- Trigger lockout: The interlock must be pressed before operating the trigger.
- Oil reservoir: A translucent tank allows visual level checks and tool-free access.
- Speed control: Trigger pressure adjusts cutting speed.
Technical specifications
STIHL lists multiple configurations together; slash-separated values are retained as published.
| Specification | Value |
|---|---|
| Rated voltage | 36 V |
| Power consumption | 1.80 kW |
| Power | 2 BHP 1 |
| Cordless power system | ALLPRO/AP |
| Recommended battery | AP 200.0 P |
| Device weight without battery | 6.3 / 6.9 lb 2 |
| Saw chain pitch | 1/4"P / 3/8"P |
| Max. battery working time AP 100.0 P | 26 min 3 |
| Max. battery working time AP 200 | 42 min 3 |
| Max. battery working time AP 200 S | 38 min 3 |
| Max. battery working time AP 200.0 P | 32 min 3 |
| Max. battery working time AP 30 | 46 min 3 |
| Max. battery working time AP 30.1 | 46 min 3 |
| Max. battery working time AP 300 | 32 min 3 |
| Max. battery working time AP 300 S | 40 min 3 |
| Max. battery working time AP 300.0 P | 48 min 3 |
| Max. battery working time AP 500 S | 48 min 3 |
| Max. cuts per battery charge AP 200 S | 160 pcs 4 |
| Max. cuts per battery charge AP 300 S | 270 pcs 4 |
| Max. cuts per battery charge AP 500 S | 320 pcs 4 |
| Device length with bumper spike | 16.7 / 17.2 in 2 |
| Max. voltage | 40 V |
| System weight without battery | 8.1 / 7.9 lb 5 |
| Bar length | 14 / 12 in 6 |
- Mechanical output expressed for comparison with gasoline equipment.
- Excludes the cutting attachment.
- Runtime varies with task, operating mode, battery condition and capacity.
- Cut totals depend on the work and operating mode.
- Includes the cutting attachment.
- Usable cutting reach is less than nominal bar length.
