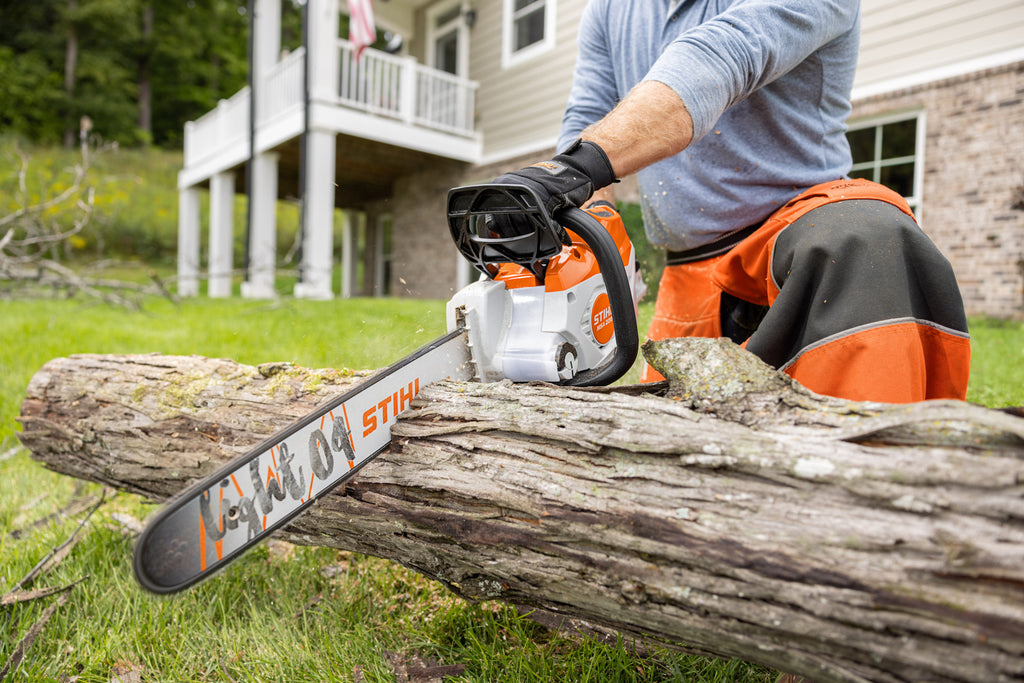

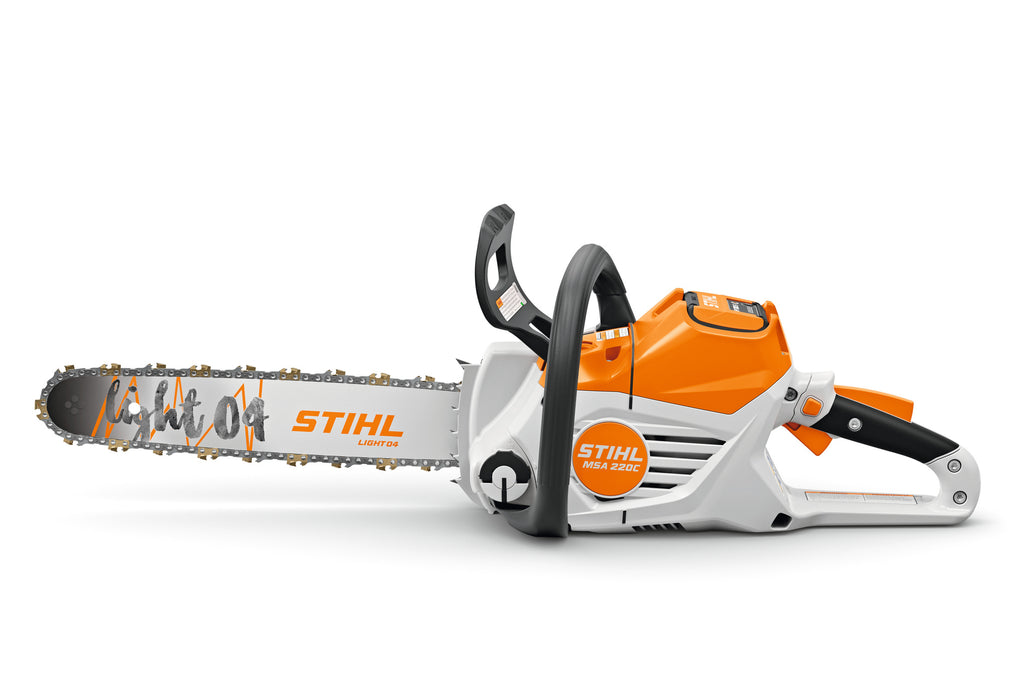

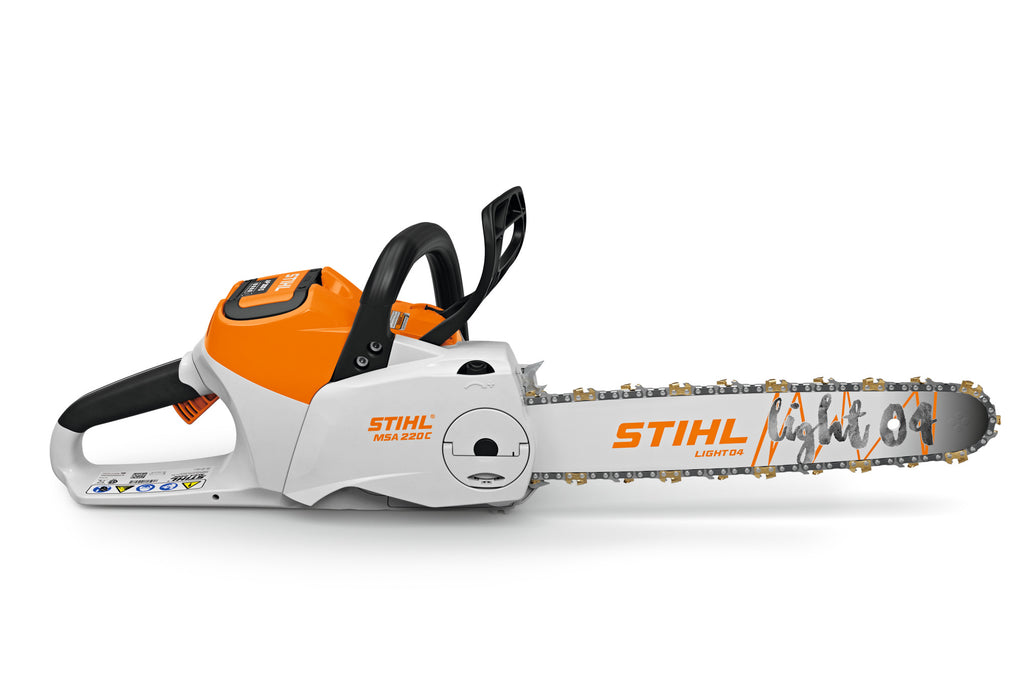

The MSA 220 C-B handles felling, limbing and firewood work with a brushless motor, Light 04 guide bar and PM3 chain. Battery operation eliminates exhaust during use, while low noise and ergonomic handling suit work near occupied areas. IPX4 construction protects against splashes. Battery and charger are separate for this unit-only selection.

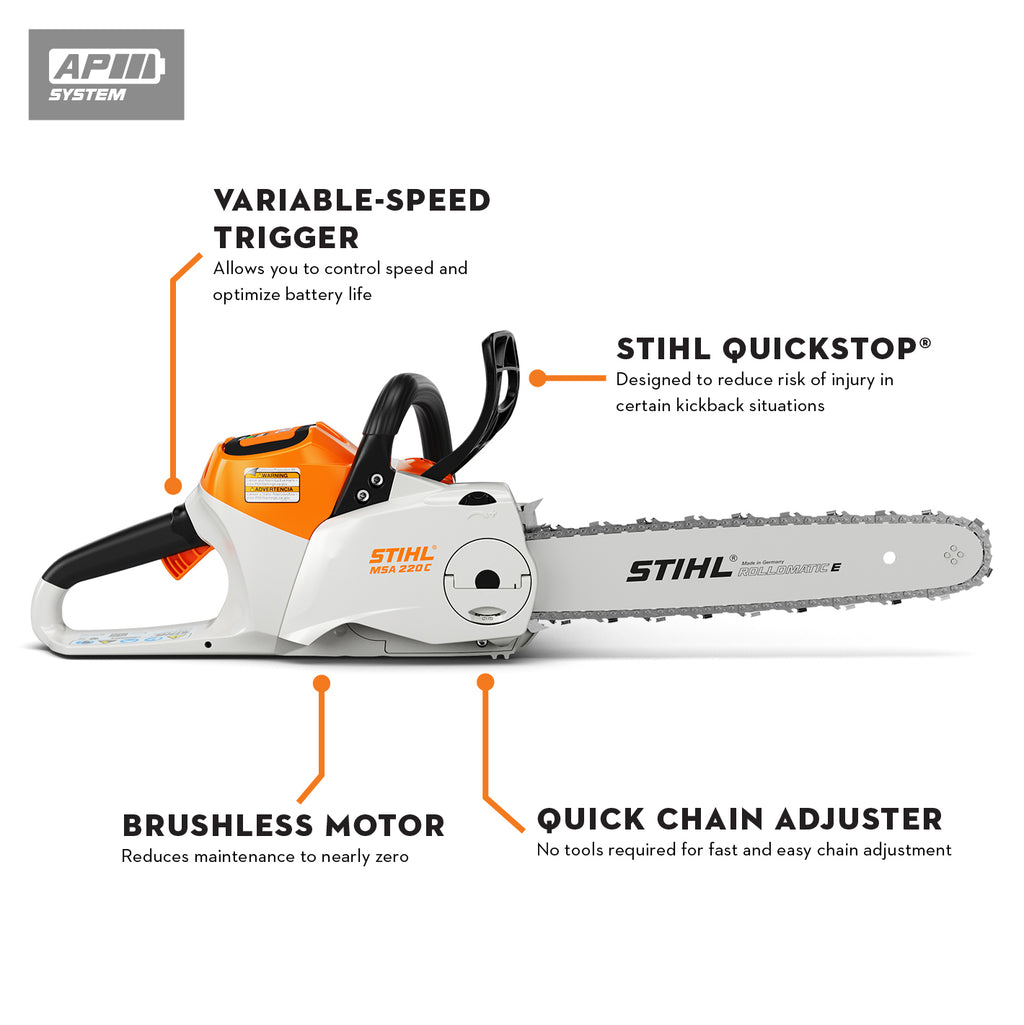

Features
- Brushless drive: Reduces routine motor maintenance.
- Retained bar nut: Helps prevent loss during maintenance.
- Ematic™ oil delivery: Directs lubricant to cutting components; specified bar-and-chain combinations can cut oil use by up to 50%.
- Splash protection: IPX4-tested construction resists splashing water.
- Low weight: Supports easier carrying and handling.
- Oil monitoring: Indicates when chain oil is low.
- Magnesium housing: Adds durability to the motor enclosure.
- Quick chain adjustment: Permits tension adjustment without tools.
- Felling alignment mark: A raised, printed stripe assists directional aiming.
- Soft grip: Rubberized surfaces improve holding comfort.
- Quickstop® brake: Hand or inertia activation can stop the chain in certain kickback conditions.
- Trigger lockout: The interlock must engage before trigger operation.
- Speed control: Trigger pressure adjusts output for the task.
Technical specifications
| Specification | Value |
|---|---|
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Power consumption | 2.10 kW |
| Power | 2.3 BHP 1 |
| Cordless power system | ALLPRO/AP |
| Recommended battery | AP 300.0 P |
| Device weight without battery | 6.9 lb 2 |
| Saw chain pitch | 3/8"P |
| Max. battery working time AP 100.0 P | 21 min 3 |
| Max. battery working time AP 200 | 32 min 3 |
| Max. battery working time AP 200 S | 24 min 3 |
| Max. battery working time AP 200.0 P | 27 min 3 |
| Max. battery working time AP 30 | 34 min 3 |
| Max. battery working time AP 30.1 | 34 min 3 |
| Max. battery working time AP 300 | 32 min 3 |
| Max. battery working time AP 300 S | 29 min 3 |
| Max. battery working time AP 300.0 P | 39 min 3 |
| Max. battery working time AP 500 S | 39 min 3 |
| Max. cuts per battery charge AP 200 S | 150 pcs 4 |
| Max. cuts per battery charge AP 300 S | 300 pcs 4 |
| Max. cuts per battery charge AP 500 S | 350 pcs 4 |
| Device length with bumper spike | 17.2 in 2 |
| System weight without battery | 8.3 / 8.1 / 8.5 lb 5 |
| Bar length | 16 / 14 / 18 in 6 |
| Groove width | 43 in — verify; source appears incorrect |
- Mechanical output expressed for comparison with gasoline equipment.
- Excludes guide bar and chain.
- Runtime varies with task and operating mode.
- Cut totals vary with task and operating mode.
- Includes guide bar and chain.
- Usable cutting reach is less than nominal bar length.
