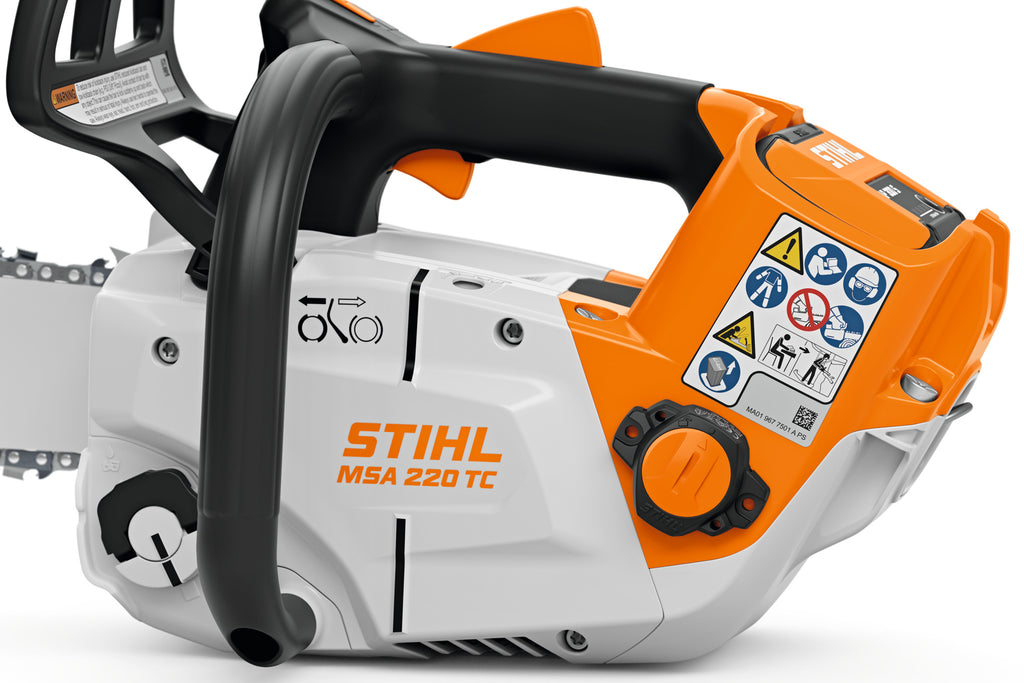

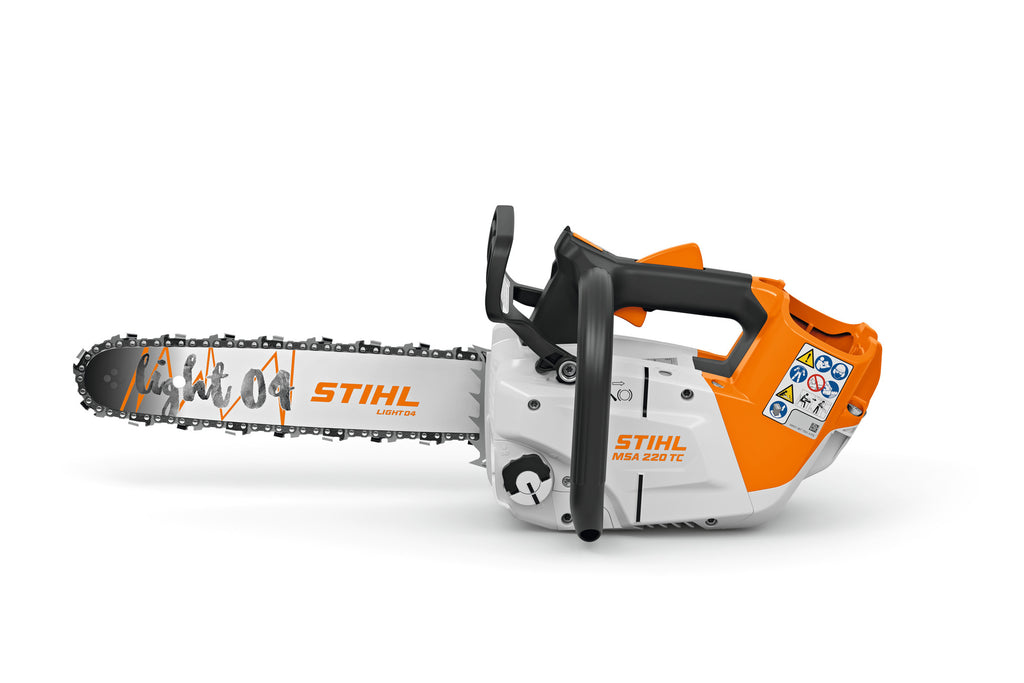

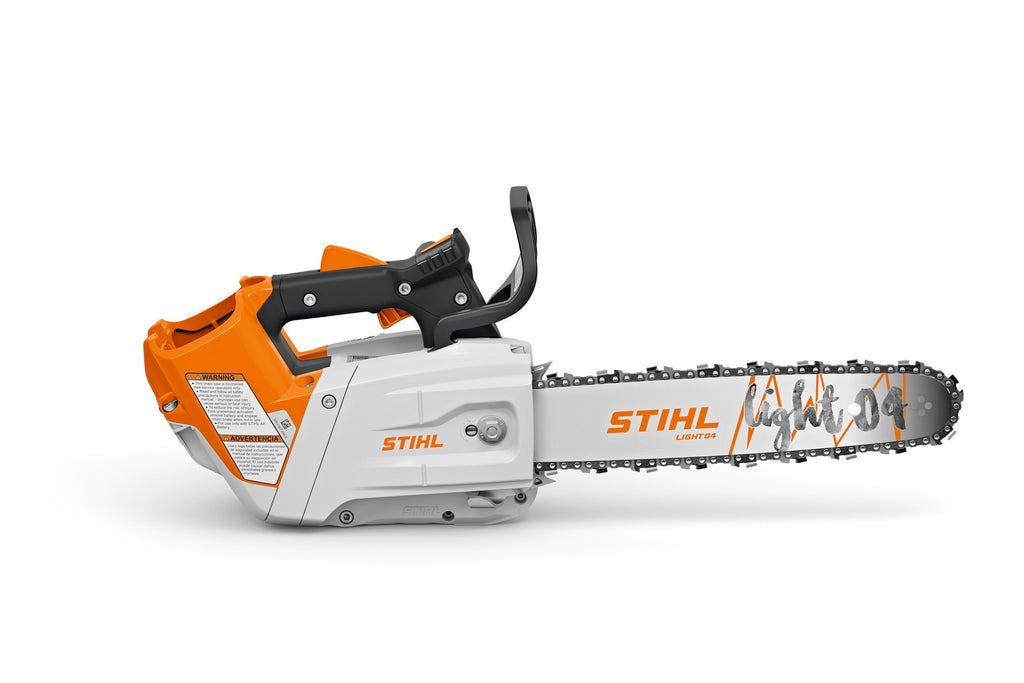

Built for professional in-tree work, the MSA 220 TC-O combines battery operation with a brushless drive and magnesium housing. Its bumper spike and felling guide support controlled positioning, while an LED display reports operating information, including chain-oil status. IPX4 splash protection and serviceable components support demanding tree-care work. Compatible with STIHL AP and ALLPRO batteries; battery and charger are separate. For trained tree-care professionals working in trees only.
Features
- Vibration reduction: Helps reduce fatigue.
- Brushless drive: Reduces routine motor maintenance.
- Retained bar nut: Helps prevent loss during servicing.

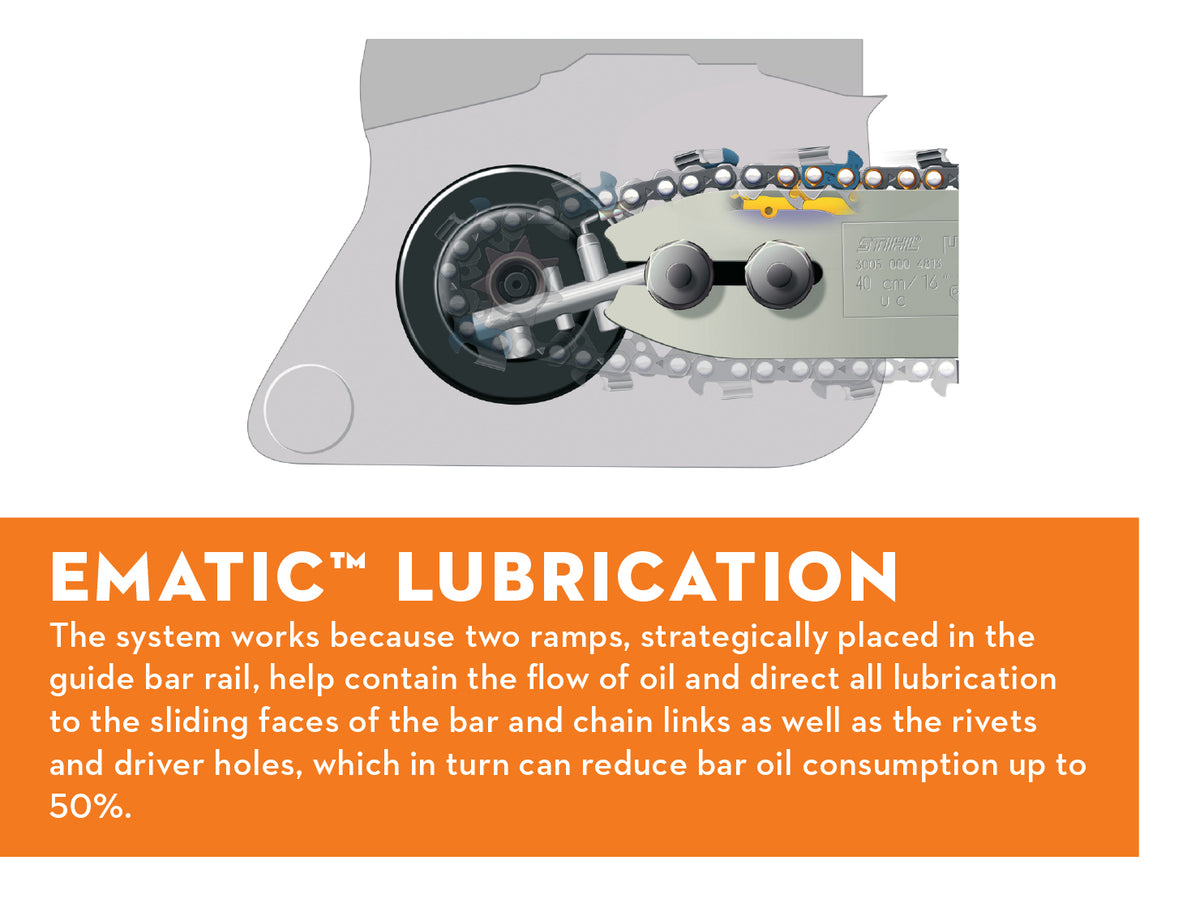

- Ematic™ oil delivery: Channels lubricant to the bar and chain, reducing consumption with the specified cutting equipment.
- Splash protection: IPX4-tested construction.

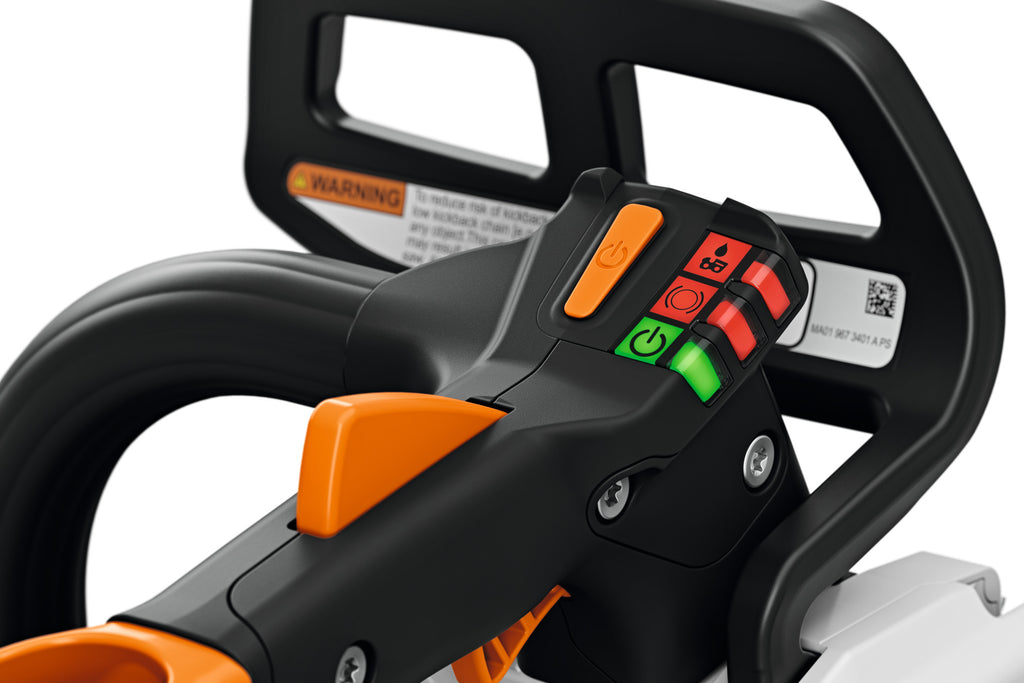

- Oil monitoring: Indicates low chain-oil level.
- Magnesium housing: Adds durability.
- Master Control Lever™: Source entry requires review: its explanation describes a choke on this battery model.
- Quickstop® brake: Hand or inertia activation can stop the chain in certain kickback conditions.
- Side tension adjustment: Provides wrench access from the side.
- Trigger lockout: Requires interlock engagement.

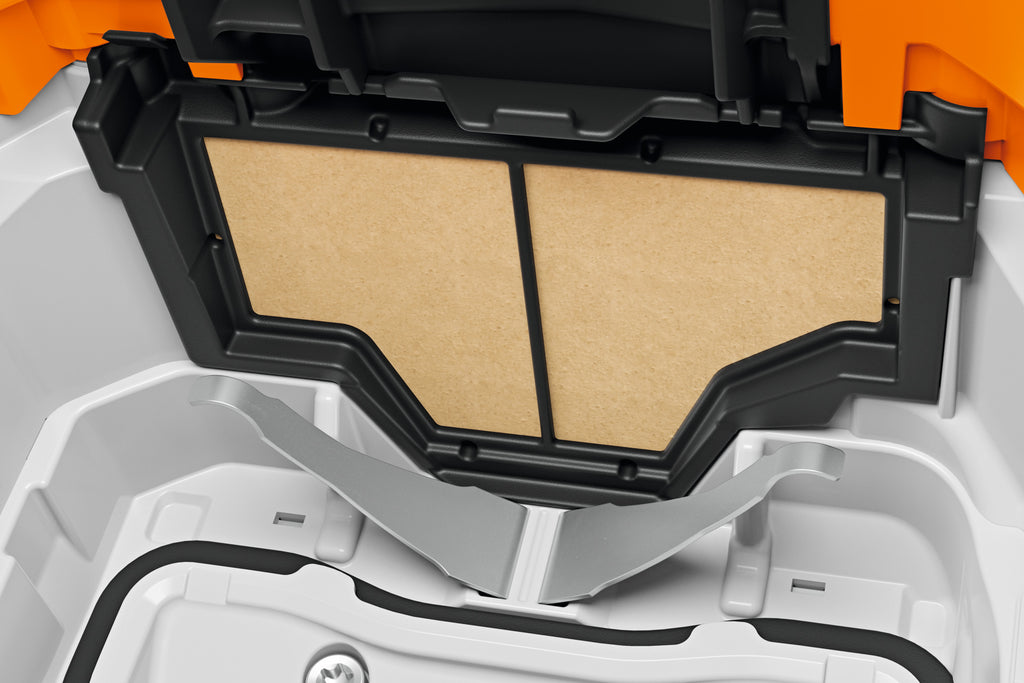

- Oil reservoir: Offers visible oil-level checking and tool-free access.
- Speed control: Trigger pressure adjusts output.
Technical specifications
| Specification | Value |
|---|---|
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Power consumption | 2.10 kW |
| Power | 2.3 BHP 1 |
| Cordless power system | ALLPRO/AP |
| Recommended battery | AP 300.0 P |
| Device weight without battery | 6 lb 2 |
| System weight without battery | 7.5 / 7.7 / 7.2 / 7.0 / 7.3 / 7.4 lb 3 |
| Bar length | 14 / 16 / 12 in 4 |
| Saw chain pitch | 3/8"P |
| Max. battery working time AP 20 | 44 min 5 |
| Max. battery working time AP 20.1 | 44 min 5 |
| Max. battery working time AP 200 | 16 min 5 |
| Max. battery working time AP 200 S | 38 min 5 |
| Max. battery working time AP 200.0 P | 31 min 5 |
| Max. battery working time AP 30 | 45 min 5 |
| Max. battery working time AP 30.1 | 45 min 5 |
| Max. battery working time AP 300 | 25 min 5 |
| Max. battery working time AP 300 S | 34 min 5 |
| Max. battery working time AP 300.0 P | 42 min 5 |
| Max. battery working time AP 500 S | 41 min 5 |
| Max. cuts per battery charge AP 200 S | 130 pcs 6 |
| Max. cuts per battery charge AP 300 S | 290 pcs 6 |
| Max. cuts per battery charge AP 500 S | 340 pcs 6 |
| Device length with bumper spike | 12.4 in 2 |
- Mechanical output expressed for comparison with gasoline equipment.
- Excludes guide bar and chain.
- Includes guide bar and chain.
- Usable cutting reach is less than nominal bar length.
- Runtime varies with task and operating mode.
- Cut totals vary with task and operating mode.
